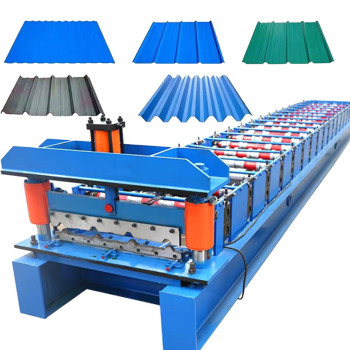

ZKRFM Trapezoidal Roof Tile Making Machine Trapezoidal Roof Sheet Roll Forming Machine Steel Motor Gear Bearing Pump ISO CE Certified 380V
ZKRFM Trapezoidal Roof Tile Roll Forming Machine
The ZKRFM Trapezoidal Roof Tile Roll Forming Machine is a high-performance, fully automatic production line engineered for manufacturing high-quality trapezoidal metal roof sheets. Built with a 350mm H-beam frame, 45# forged steel rollers with hard chrome plating, and an advanced PLC control system (Delta brand), this machine delivers precision forming, stable operation, and long service life. Ideal for steel structure buildings, industrial plants, warehouses, and residential roofing projects.
Technical Specifications
| Raw Material | PPGI, PPGL, Galvanized Steel |
| Material Thickness | 0.3-0.8 mm (24-26 gauge) |
| Effective Width | 1000 / 1200 / 1250 mm |
| Forming Speed | 15-20 m/min |
| Roller Stations | 18 rows |
| Shaft Diameter | Φ80 mm solid, 45# heat-treated steel |
| Main Motor Power | 5.5 kW (forming) + Hydraulic motor |
| Voltage | 380V / 50Hz / 3-phase |
| Cutting Type | Hydraulic die cutting |
| PLC Brand | Delta (Taiwan) / Omron Encoder / Schneider Electric |
| Drive Method | 1-inch double chain & gear transmission |
| Machine Weight | 3,500 kg |
| Overall Dimension | 4000 × 1200 × 1300 mm |
| Certification | ISO9001, CE (2006/42/EC) |
Key Features & Advantages
Precision Forming
Individual roller design releases internal stress of the steel sheet, ensuring excellent shape and high precision. Hard chrome plated rollers (0.05mm thickness) prevent wear and corrosion.
Stable Transmission
Dual chain and gear drive system with heavy-duty roller design provides smooth, reliable power transmission for continuous production.
PLC Auto Control
Delta PLC with touch screen interface supports English/Chinese operation. Set orders, change length and quantity easily. Omron encoder ensures accurate cutting length.
Hydraulic Cutting System
Four-column hydraulic die cutting structure with GCr12 hardened steel blades ensures stable, clean cuts at high speed.
Applications
Steel Structure Buildings
Ideal for large-span industrial plants, warehouses, and commercial buildings requiring durable trapezoidal roof panels.
Why Choose ZKRFM?
1 Year Warranty
Free replacement parts with shipping and repair service included.
≤3h Response Time
Quick technical support and online troubleshooting available.
100% On-Time Shipping
Verified on-time delivery rate with professional packaging.
CE & ISO Certified
CE (2006/42/EC) and ISO9001 certified manufacturing facility in Hebei, China.
Frequently Asked Questions
Q: What is the delivery time?
A: 30-45 days after receiving the deposit payment.
Q: Do you provide after-sales support?
A: Yes, 18 months free warranty and lifetime technical support. Damaged parts can be replaced free of charge (buyer covers shipping).
Q: Can you customize the machine?
A: Yes, most machines are built to customer specifications using top-brand components.
