Full Automatic Muti Function CZ Purlin Roll Forming Machine In North America

Categories	Purlin Roll Forming Machine
Trademark/Brand	Junnan Steel Wholesale
Raw Material	PPGI PPGL GI GL
Material Thickness	2mm - 3mm
Shaft Material	45# High Grade Steel
Roller material	GCr 15
Work Pressure	195 Mpa---350 Mpa
Voltage	380V/50HZ 3Phase(as Customer's Request)
Dimension(LWH)	800016001600mm
Punching	Hydraulic Punching
FOB port	Xingang / Caofeidian or any other main ports in China
Terms of Payment	L/C, T/T
Update Time	Nov 5,2025

Contact Now

Favorites

Detail Information

Full Automatic Muti Function CZ Purlin Roll Forming Machine In North America

The automatic CZ exchange roll forming machine is a complete roll forming system designed to manufacture CZ purlins in a variety of specifications. This advanced equipment includes key components such as a passive loading frame, leveling device, automatic punching system, front shear device, main forming unit, continuous post-forming shear unit, hydraulic station, and a computerized control system.

Machine Components

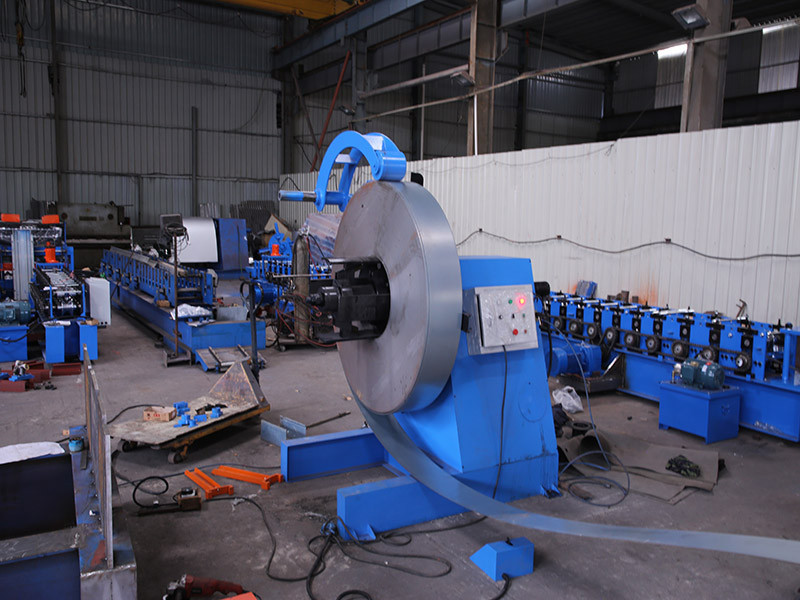

Hydraulic Decoiler

5 Ton Hydraulic Decoiler: one set

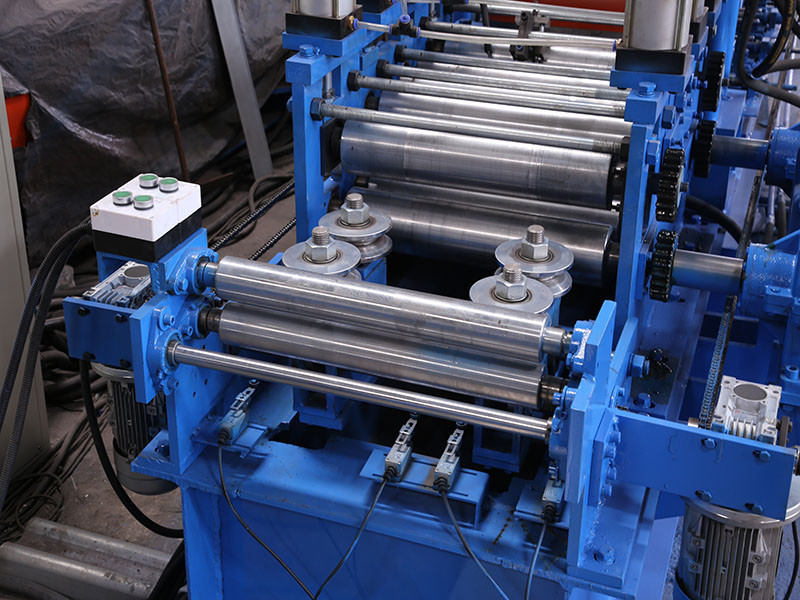

Feeding And Leveling Device

With handwheels for adjust different feeding width

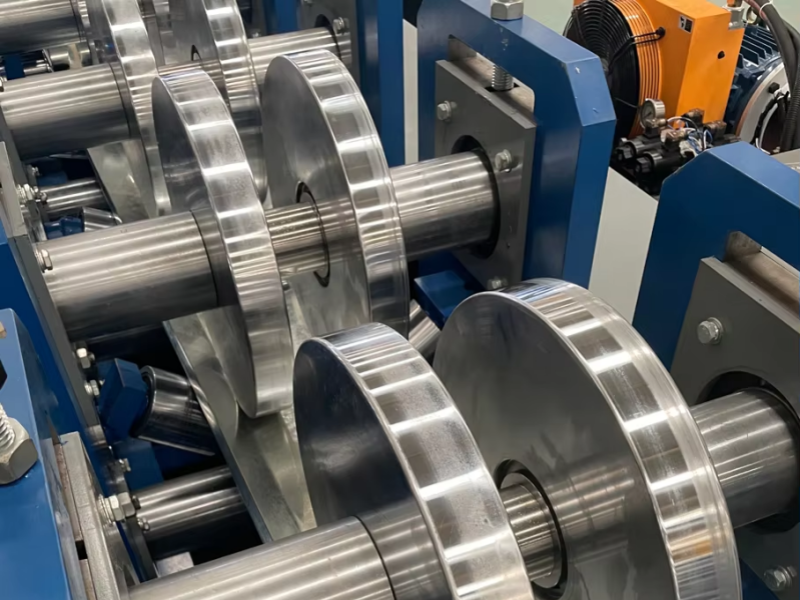

Roll Former 1 set

Running Speed:30m/min(without punching and cutting)

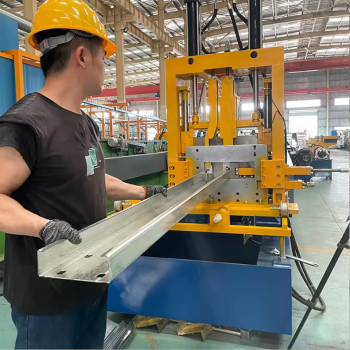

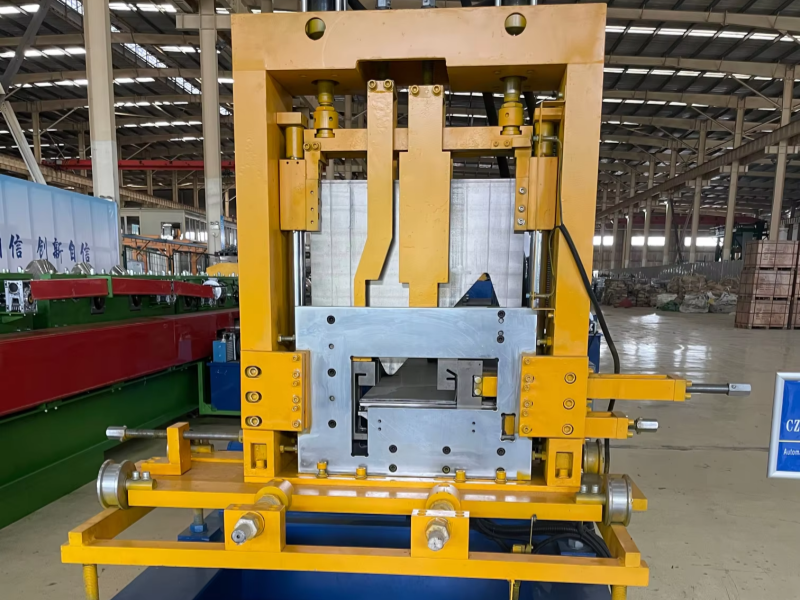

Hydraulic Post Cutter 1 set

Cutting method：Multiple size cutter

Technical Parameters

Model	CZ Purlin Machine
Size for C Purlin	100-300mm
Size for Z Purlin	120-300mm
Material Thickness	1.2-3.0mm
Machine Dimension	1100018001500mm
Forming Steps	18steps
Running Speed	0-30m/min
Hydraulic Power	7.5KW
Roller Material	Gcr15&Crl2,heat treatment,plate hard chrome
Cutter Material	SKD-11
Machine Frame Material	H-Beam with 30mm thickness

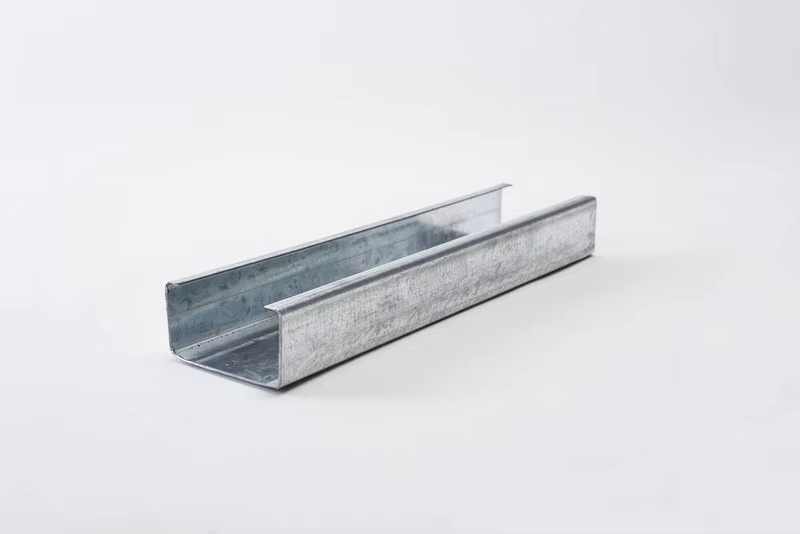

C Z Profile Drawing

We offer customization options! Whether it's profile, color, or logo, just let us know your requirements. You can either provide design drawings or simply tell us the material, profile, feeding width, and thickness, and we'll tailor the solution to meet your needs.

Profile Model	C Section（mm）			Thickness
Profile Model	Web	Flange	Lip	Thickness
C100-300	100-300mm	40-100mm	10-20mm	1.2-3.0mm
Z120-300	120-300mm	40-100mm	10-20mm	1.2-3.0mm

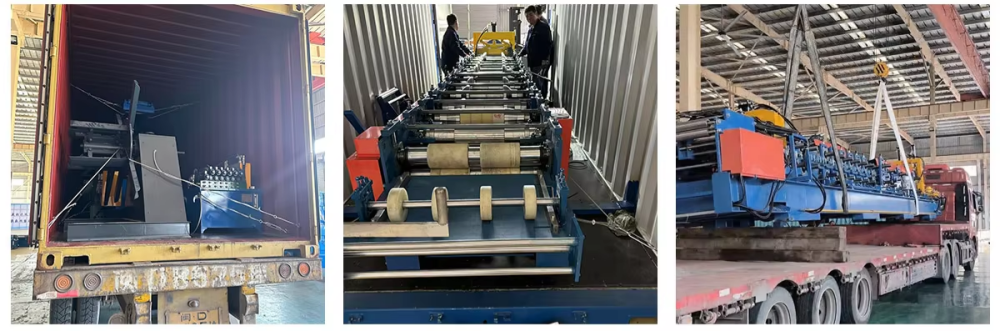

Package

For different machines or production line components, we have distinct packaging solutions:

- For complete machines or production lines, we use plastic film for covering and wrapping. These are then loaded into containers using forklifts or cranes.

- For critical components, such as roll-forming roller sets, we employ metal frames for packaging. All parts are securely fastened within the container using steel ropes and locking devices to ensure safe long-distance transportation.

Service We Supply

1. Lifetime Factory Service: Providing technical support for the entire service life of our machines.

2. Customized Design: Product specifications can be tailored according to customer requirements.

3. One-Year Warranty: Free replacement of damaged parts caused by quality issues.

4. Optional Overseas Service: We can dispatch technicians to the customer's factory for installation and staff training, subject to additional fees.
